2.0 更新内容 2.0 Updates

• Rhino官方支持与适配 Rhino Official Support
  • 从Rhino 8.20开始提供更好的兼容支持 Better compatibility support since Rhino 8.20
  • 简化安装流程，支持通过Package Manager直接安装 Simplified installation process via Package Manager
  • 不再需要修改注册表来屏蔽原生Block编辑功能 No longer requires registry modification to disable native Block editing
• 跨平台兼容性 Cross-platform Compatibility
  • 使用Net Framework编译，在Net Core上测试通过 Compiled with Net Framework and tested on Net Core
  • 全平台统一安装文件：BlockEditNew.rhp Single installation file for all platforms: BlockEditNew.rhp
  • 支持从 Rhino 6.25 到最新 Rhino 8，支持 MacOSX / Windows Supports all versions from Rhino 6.25 to the latest Rhino 8 and from Windows to MacOSX
• 内核重构与优化 Core Refactoring & Optimization
  • 完全重写内核代码，提升稳定性和性能 Completely rewritten core code for better stability and performance
  • 使用 UserData 记录物体操作状态 Using UserData to track object states
  • 支持编辑中断恢复机制，比如编辑中保存文件后恢复编辑 Improved recovery mechanism for interrupted editing. e.g. Save while editing and recovering after reopen.
  • 取消 Group 编辑中的备份功能以提升稳定性 Removed backup feature in Group editing for better stability
• 功能增强与新增 Feature Enhancements & Additions
  • 所有子命令全面支持Undo功能 Full Undo support for all sub-commands
  • 增强显示模式功能 Enhanced display modes
  • 新增大量实用命令 Added numerous utility commands
    • 部分功能从OrangePetals插件迁移而来。包括： Some features migrated from OrangePetals plugin
    • 广受欢迎的 GHLoadManager ( Grasshopper插件载入管理 ) Including popular GHLoadManager (Grasshopper plugin loader)
    • 批量导出已命名视图 ( ExportNamedViews ) 等实用工具 Utility tools like ExportNamedViews

图块(Block)编辑 Block Editing

双击图块，打开编辑界面，双击空白处关闭

Double-click the block to open the editing interface, double-click a blank area to close it.

默认显示按钮

Default display button

点击按钮，可以在UI界面实现各种快捷操作：

Click the button to perform various quick operations in the UI:

• 图块名称：点击可以重命名图块 Block Name: Click to rename the block
• 显示模式：Display Mode:
  • “锁定外部物体” "Lock External Objects"
  • “隐藏外部物体”（显示速度更快） "Hide External Objects" (Faster Display Speed)
• 保存、取消 Save, Cancel
• 右键箭头可以展开更多功能 Right-click arrow to expand more features

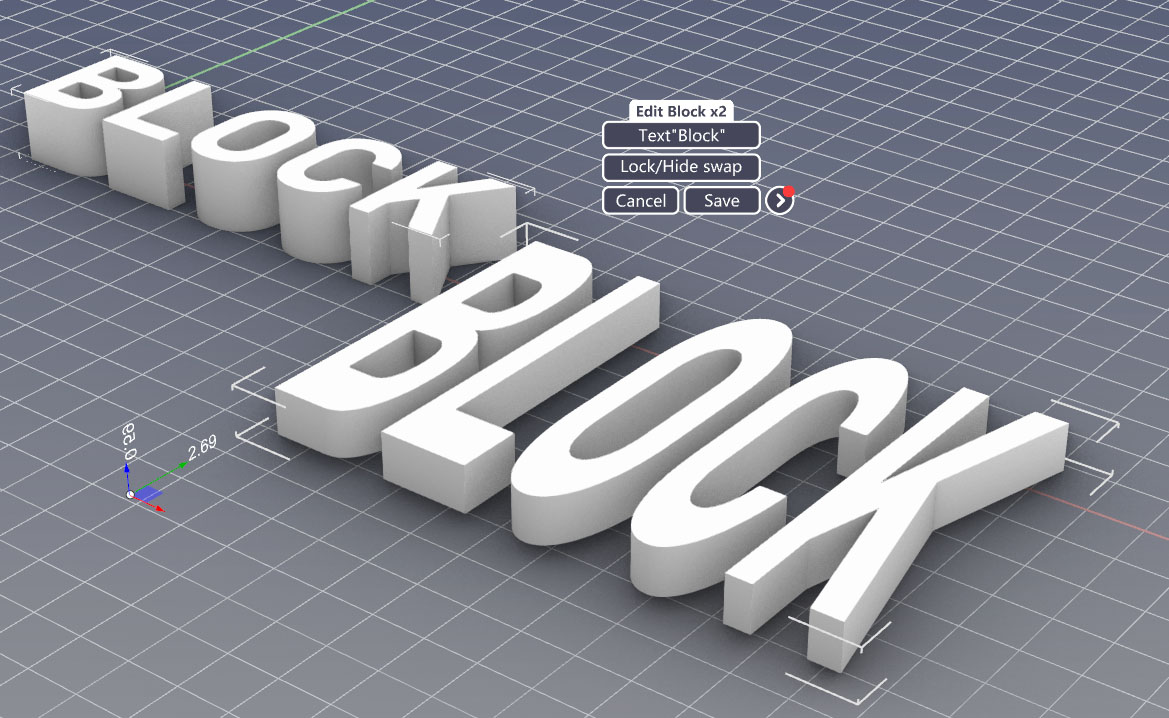

支持不等比缩放的图块

Supports non-uniformly scaled blocks

• 双击空白处可以退出编辑： Double-click a blank area to exit editing:
  • 可以通过自定义设置关闭 Can be disabled through custom settings
• 原点可以被吸附Origin can be snapped
• 可以设置ESC为储存或者取消 ESC can be set to save or cancel
  • 通过自定义设置勾选 Selectable through custom settings
• 点击名字按钮可以改名 Click the name button to rename
  • 储存后生效 Takes effect after saving

支持嵌套的图块

Supports nested blocks

• 支持连续双击打开 Supports continuous double-click to open
  • 可以在自定义设置中禁用双击，改用命令打开 Double-click can be disabled in custom settings, use command to open instead
  • 连续双击空白处保存关闭 Continuous double-click on a blank area to save and close
• 添加Add
  • 范围是图块外部物体 Range is external objects to the block
  • 图块本身不可以被添加到自身 Block itself cannot be added to itself
  • 储存后生效 Takes effect after saving
• 移出Remove
  • 可以选择放回层级 Can choose to put back into hierarchy
  • 储存后生效 Takes effect after saving
  • 退出全部自动放回 Exiting all will automatically put back

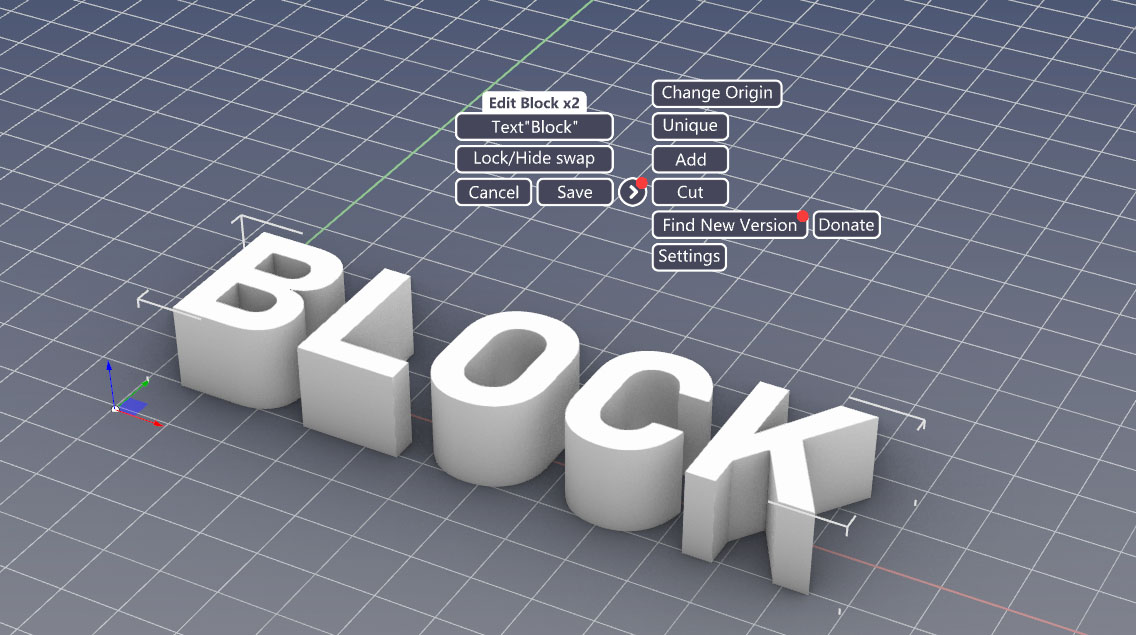

展开二级菜单

Expand Secondary Menu

• 修改图块原点 Modify Block Origin
  • 能够保证其他地方已有图块位置不变 Ensures that the position of existing blocks elsewhere remains unchanged
• 使图块唯一Make Block Unique
  • 储存后生效Takes effect after saving
  • 如果批量使图块唯一，可以在编辑器外使用UniqueBlocks命令。 If you want to make blocks unique in batches, you can use the UniqueBlocks command outside the editor.
• 版本Version
  • 点击可以查看当前版本，或者检测更新 Click to view the current version or check for updates
  • 新版本下载地址： New version download link:
  • food4rhino.com
  • pan.baidu.com
• 捐赠：Donation:
  • 欢迎打赏~Donations are welcome~
  • BUG、新功能需求和插件讨论 For bugs, new feature requests, and plugin discussions
  • 可以加我微信wucl12进微信群 Contact me:
  • Email: wucl12@foxmail.com Email: wucl12@foxmail.com

组(Group)编辑 Group Editing

支持组编辑，逻辑和图块相同 Supports group editing, with the same logic as block editing

组和图块的编辑原理不同。
图块为单个物体，组为多个物体。
在允许使用图块的时候，图块更便捷和安全 The principles of group and block editing are different.
A block is a single object, while a group consists of multiple objects.
When blocks are allowed, they are more convenient and secure to use.

• 支持打开嵌套组 Supports opening nested groups
  • 组的取消功能会备份打开时的状态，可能造成速度的减慢。可以在自定义设置里关闭。 The undo function for groups backs up the state when opened, which may slow down performance. This can be disabled in custom settings.
• 支持打开组内图块 Supports opening blocks within a group
  • 注意：图块内的组不受Rhino支持，无法保存 Note: Groups within blocks are not supported by Rhino and cannot be saved
• 不想使用组编辑功能可以在自定义设置关闭 If you don't want to use the group editing feature, you can disable it in custom settings

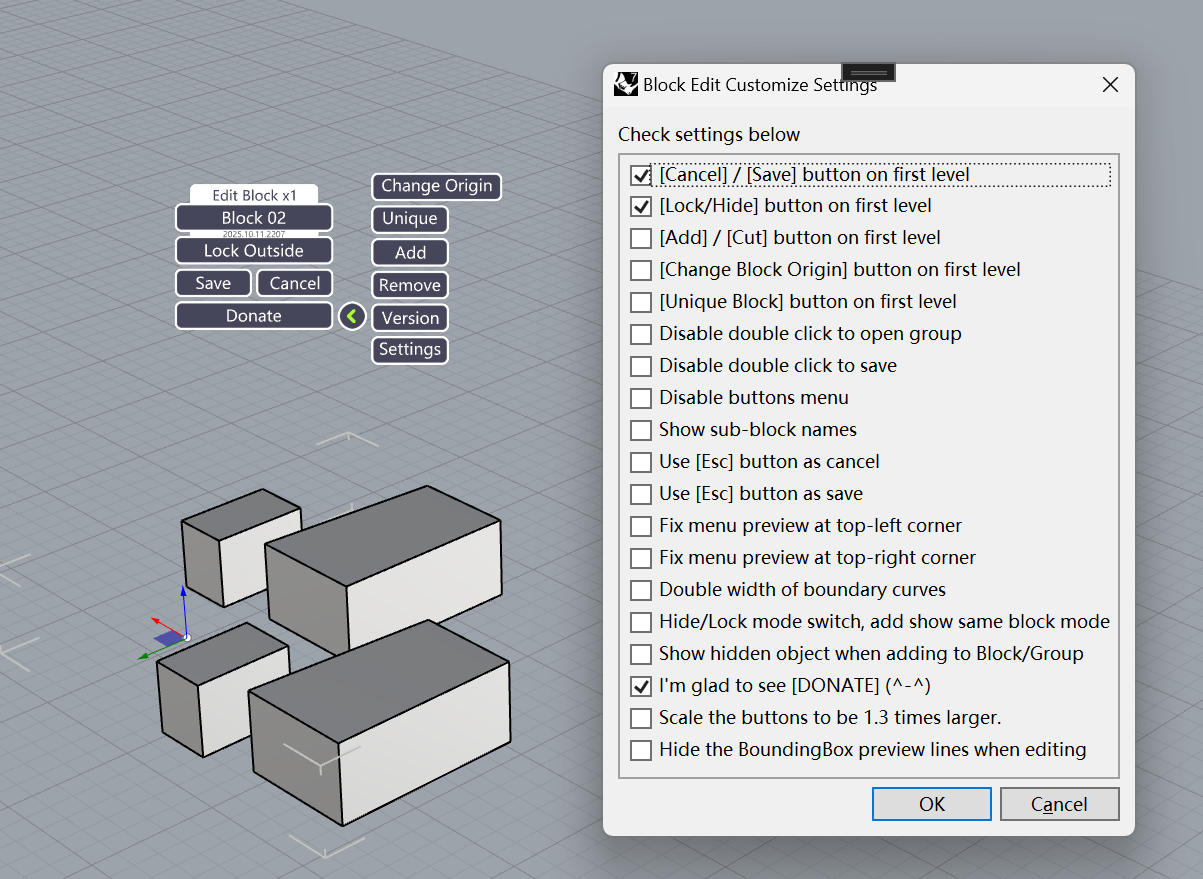

自定义设置 Custom Settings

输入 "BlockEditSettings 命令，打开自定义设置 Enter the "BlockEditSettings command to open custom settings

• 菜单与按钮设置 Menu and Button Settings
  • 修改一级菜单显示按钮 Modify the display buttons in the main menu
    • 勾选的放在一级菜单 Checked items are placed in the main menu
    • 储存/取消按钮 [Cancel] / [Save] button
    • 切换隐藏/锁定按钮 [Lock/Hide] button
    • 添加/移除物体按钮 [Add] / [Cut] button
    • 修改图块原点按钮 [Change Block Origin] button
    • 唯一图块按钮 [Unique Block] button
  • 指定按钮菜单显示位置 Assign button menu display position
    • 固定在左上角、右上角 Fixed at top left, top right
• 编辑行为设置 Editing Behavior Settings
  • 禁用双击打开组 Disable double-click to open groups
    • 仅禁用双击打开，可以使用 "GroupEdit" 命令打开 Use the "GroupEdit" Command to open instead
  • 禁用双击保存 Disable double-click to save
    • 可以使用Command打开 You can use the Command to open
  • 禁用按钮菜单 Disable button menu
    • 可以完全使用Command，操作各种按钮指令 You can fully use Commands to operate various button functions
  • 指定 [ESC] 按钮功能 Assign [ESC] button function
    • 不设置、保存退出、取消退出 No action, Save & Exit, Cancel & Exit
• UI显示设置 UI Display Settings
  • 包围盒的边界曲线的加粗显示 Bold display of bounding box boundary curves
  • 切换外部物体的显示状态时，增加显示相同图块的状态 For display state switching, add the state of displaying the same block
  • 添加外部物体的时候，是否显示隐藏物体 When adding external objects, whether to display hidden objects
  • 隐藏编辑时的范围框线 Hide the BoundingBox preview lines when editing
• 其他设置 Other Settings
  • 隐藏捐赠按钮 Hide donation button
